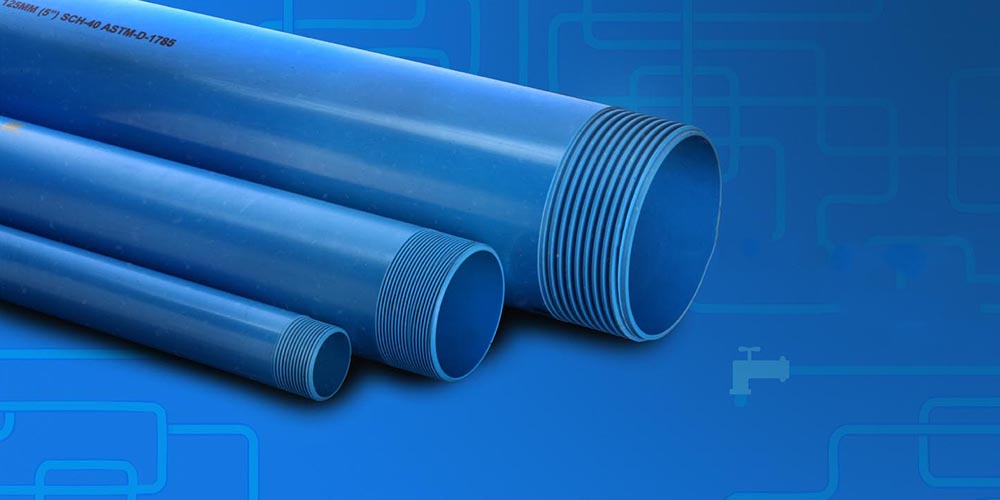

Pipes for Borewell & Tubewell Application as per IS 12818 & ASTM
D : 1785

IYRO pipes offer a broad range of pipes for borewell applications to cater to every need for construction of Borewell and Tubewell. Even in this, the manufacturing takes place as per the relevant standards.

The rang of pipes includes :-

  • IYRO piping system is available from 11/2″ to 12″ diameter sizes at different rating from Sch 40 to Sch 120 / CS & CM.
  • Casing pipes as per IS 12818.
  • Casing pipes as per ASTM D : 1785.
  • Ribbed screen casing pipes for tube-wells

  • SDR casing pipes series for shallow depth applications as per company standard.
  • Plain pipes as well as screen (slotted) are available in every category of casing pipes.
  • Slotted pipes could also get used for rainwater harvesting.

DIMENSIONS OF PVC PIPES FOR BOREWELL & TUBEWELL APPLICATION ACCORDING TO
IS : 12818:21010

Size
(Inch)		 M.O.D
(mm)		 O.D at any point
(mm)		 Wall Thickness
(mm)		 Male
Thread		 Female
Thread
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
40 (11 1/2″) CM 48.0 48.2 47.9 48.3 3.5 4.0 21 25 25 29
50(2″) CM 60.0 60.2 59.9 60.3 4.0 4.6 26 30 30 34
80(3″) CM 88.0 88.3 87.9 88.4 4.0 4.6 36 40 40 44
100(4″) CM 113.0 113.3 112.9 113.4 5.0 5.7 41 45 45 49
125(5″) CM 140.0 140.4 139.9 140.5 6.5 7.3 56 60 60 64
150(6″) CM 165.0 165.4 164.6 165.6 7.5 8.5 56 60 60 64
175(7″) CM 200.0 200.5 199.6 200.6 8.8 9.8 56 60 60 64
200(8″) CM 225.0 225.5 224.5 225.8 10.0 11.2 66 70 70 74

DIMENSIONS OF PVC PIPES FOR BOREWELL & TUBEWELL APPLICATION ACCORDING TO
IS : 12818:21010

Size
(Inch)		 M.O.D
(mm)		 O.D at any point
(mm)		 Wall Thickness
(mm)		 Male
Thread		 Female
Thread
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
150(6″) CS 165.0 165.4 164.6 165.6 5.7 6.5 56 60 60 64
175(7″) CS 200.0 200.5 199.6 200.6 7.0 7.8 56 60 60 64
200(8″) CS 225.0 225.5 224.5 225.8 7.6 8.8 66 70 70 74

IYRO is an ISO 9001:2015 certified company. our products have forever adhered to the strict norms of international standards.
