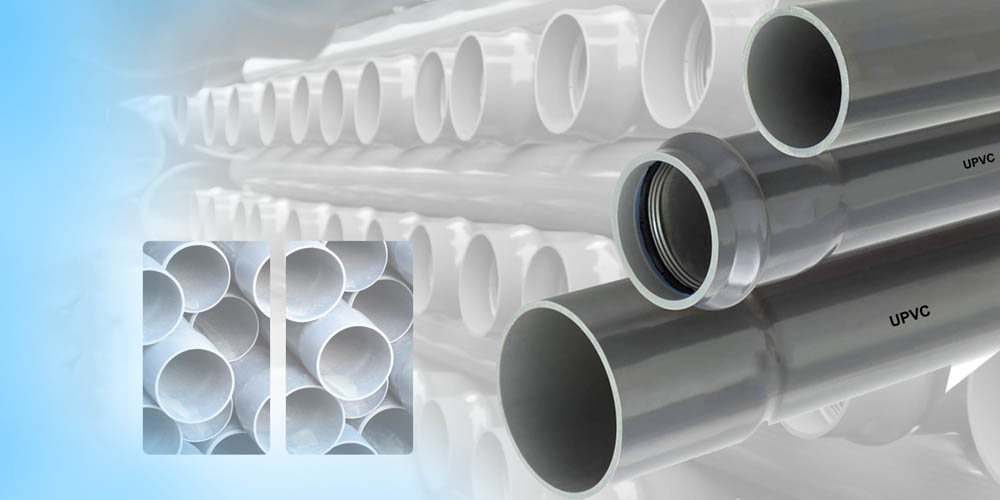

IYRO pipes provide the largest range of PVC pressure pipes manufactured as per the strict adherence to standards of quality set by IS 4985:2021 with different sizes and various pressure classes, such pipes are available in two categories, such as plain and solvent cement joint types.
IYRO piping system is available from 40 to 315mm diameter size at different rating 2 from 2.5 to 10Kgf/cm
These pipes are extensively used for variety of applications like
| Size (MM) | M.O.D (MM) | O.D at any point (MM) | Wall Thickness (MM) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class -I | Class -II | Class -III | Class -IV | Class -V | ||||||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 40 | 40.1 | 40.3 | 39.5 | 40.5 | – | – | – | – | 1.4 | 1.8 | 1.8 | 2.2 | 2.2 | 2.7 |
| 50 | 50.0 | 50.3 | 49.4 | 50.6 | – | – | – | – | 1.7 | 2.1 | 2.3 | 2.8 | 2.8 | 3.3 |
| 63 | 63.0 | 63.3 | 62.2 | 63.8 | – | – | 1.5 | 1.9 | 2.2 | 2.7 | 2.8 | 3.3 | 3.5 | 4.1 |
| 75 | 75.0 | 75.3 | 74.1 | 75.9 | – | – | 1.8 | 2.2 | 2.6 | 3.1 | 3.4 | 4.0 | 4.2 | 4.9 |
| 90 | 90.0 | 90.3 | 88.9 | 91.1 | 1.3 | 1.7 | 2.1 | 2.6 | 3.1 | 3.7 | 4.0 | 4.6 | 5.0 | 5.7 |
| 110 | 110.0 | 110.4 | 108.6 | 111.4 | 1.6 | 2.0 | 2.5 | 3.0 | 3.7 | 4.3 | 4.9 | 5.6 | 6.1 | 7.1 |
| 125 | 125.0 | 125.4 | 123.5 | 126.5 | 1.8 | 2.2 | 2.9 | 3.4 | 4.3 | 5.0 | 5.6 | 6.4 | 6.9 | 8.0 |
| 140 | 140.0 | 140.5 | 138.3 | 147.7 | 2.0 | 2.4 | 3.2 | 3.8 | 4.8 | 5.5 | 6.3 | 7.3 | 7.7 | 8.9 |
| 160 | 160.0 | 160.5 | 158.0 | 162.0 | 2.3 | 2.8 | 3.7 | 4.3 | 5.4 | 6.2 | 7.2 | 8.3 | 8.8 | 10.2 |
| 180 | 180.0 | 180.6 | 177.8 | 182.2 | 2.8 | 3.4 | 4.2 | 4.9 | 6.1 | 7.0 | 8.0 | 9.2 | 9.9 | 11.4 |
| 200 | 200.0 | 200.6 | 197.6 | 202.4 | 2.9 | 3.4 | 4.6 | 5.3 | 6.8 | 7.7 | 8.9 | 10.3 | 11.0 | 12.7 |
| 225 | 225.0 | 225.7 | 222.3 | 227.7 | 3.3 | 3.9 | 5.2 | 6.0 | 7.6 | 8.8 | 10.0 | 11.5 | 12.4 | 14.3 |
| 250 | 250.0 | 250.8 | 247.0 | 253.0 | 3.6 | 4.2 | 5.7 | 6.5 | 8.5 | 9.6 | 11.2 | 12.9 | 13.8 | 15.9 |
| 280 | 280.0 | 280.9 | 276.6 | 283.4 | 4.1 | 4.8 | 6.4 | 7.4 | 9.5 | 11.0 | 12.5 | 14.4 | 15.4 | 17.8 |
| 315 | 315.0 | 316.0 | 311.2 | 318.8 | 4.6 | 5.3 | 7.2 | 8.2 | 10.7 | 12.0 | 14.0 | 16.1 | 17.3 | 19.9 |
IYRO is an ISO 9001:2015 certified company. our products have forever adhered to the strict norms of international standards.
